Item NO.:
AusLand MDS-9001Lead Time:
3 daysProduct Orgin:
Mainland ChinaShipping Port:
ShenzhenPayment:
T/T，Western Union etcColor:
BlueSize:
176*102*33mm(L×W×H)weight:

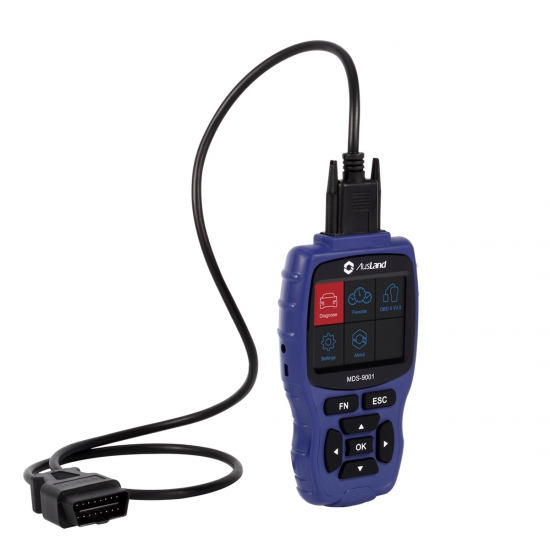

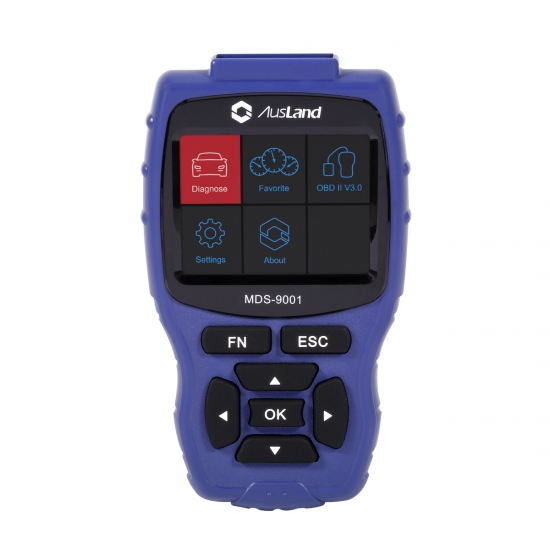

270gAUSLAND MDS-9001 Auto Diagnostic Code Reader SAS ABS TPMS BMS For Car Scanner Handheld Scan Programming Tool for Ford

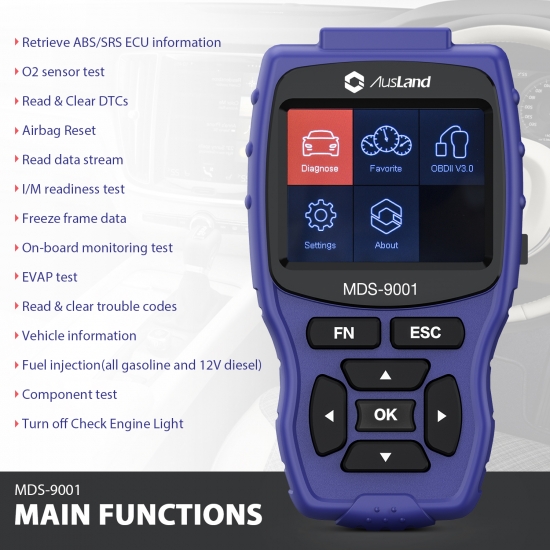

Features
l Works on most systems
l Reads & Clear trouble code (generic & manufacturer specific DTC’s) on all the systems such as engine, transmission, abs and airbag
l On-board readiness monitoring- to read the results of on-board diagnostic
monitoring tests for specific components systems

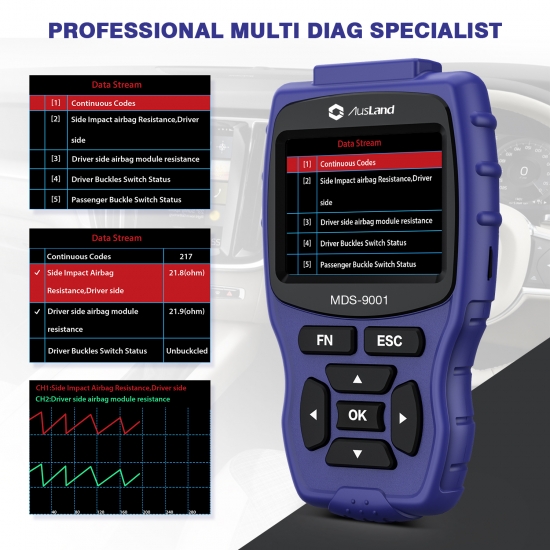

l Requests and records live sensor data
l Provides live data graphing, Merges graphs for easy and intuitive diagnosis
l Displays freeze frame data, providing freeze frame data as snapshot of the operating conditions at the time of an emission-related fault
l Performs most adaptations, Does active tests on systems and components
l Performs special functions, coding, security access
l Retrieve ECU information
l EVAP test – initiating a leak test for the vehicle’s EVAP system with necessary
l procedures available
l Fuel injection (all gasoline & 12 V diesel)
l Resets oil service light, Oil light/service reset – supporting service lamp reset, brake pad reset service mileage, check engine light, and service interval
l Turn off the ECU warning light, diagnoses EPB/SBC functionality
l View & graph live data for real time graphing/live data reading
l Component for bi-directional tests such as cycling abs solenoids
l Re-calibration of brake control module after changing the brake pads
Replacement
l Sets inspection 1, 2 service interval
l Sets (non) long life oil service
l Sets inspection mileage
l Deactivates and re-activates brake control system
l Retracts calipers for brake pad replacement
l Returns calipers to the original position
l Initializes the wear indicator if new pads installed
l Diagnoses EPB caliper functionality
l Code troubleshooters for faster and easier diagnosis

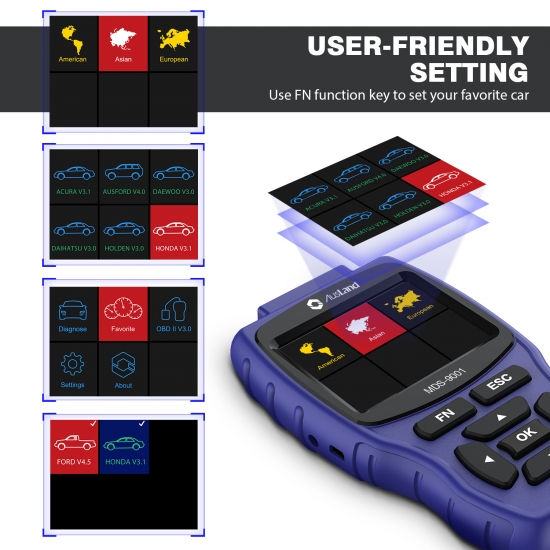

l Multilingual menu options and code definitions
l Memory card for data backup and software update by internet
l Large TFT color screen and menu-driven operation
l Multi System Platform capable
OBDII Features
l Read fault codes
l Clear fault codes
l Retrieve data stream
l EVAP test
l Vehicle information
l I/M Readiness

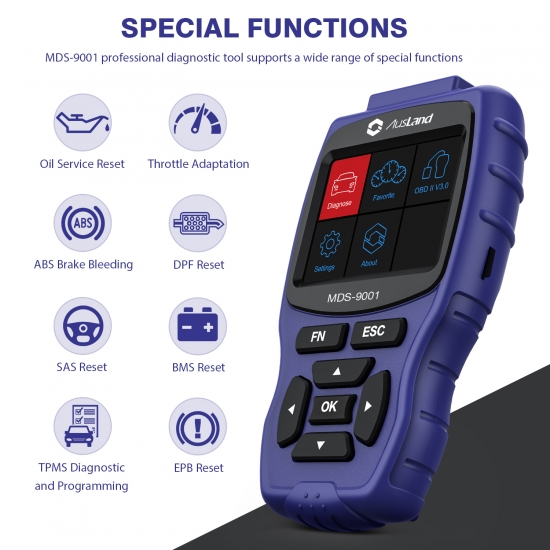

Special Funciton
l CONFIGURE THE LATERAL ACCELERATION SENSOR
l CONFIGURE THE LONGITUDINAL ACCELERATION SENSOR
l CONFIGURE THE PRESSURE SENSOR
l CONFIGURE THE STEERING ANGLE SENSOR
l DIESEL PARTICULATE FILTER STATIC REGENERATION
l ENTER THE FUEL INJECTOR DEFAULT COUNT VALUE
l FUEL INJECTOR CORRECTION FACTORS
l KOEO ON DEMAND SELF-TEST
l MODULE INITIALIZATION
l PULL DRIFT COMPENSATION
l RESET DIFFERENTIAL PRESSURE SENSOR LEARNED VALUES
l RESET KAM
l RESET THE DIESEL PARTICULATE FILTER LEARNED VALUES
l RESET THE EXHAUST GAS RECIRCULATION VALVE LEARNED VALUES
l RESET THE EXHAUST GAS TEMPERATURE
l RESET THE FUEL INJECTOR LEARNED VALUES
l RESET THE HEATED EXHAUST GAS OXYGEN SENSOR LEARNED VALUES
l RESET THE HIGH PRESSURE FUEL SYSTEM LEARNED VALUES
l RESET THE INTAKE AIR THROTTLE VALVE LEARNED VALUES
l RESET THE MASS AIR FLOW SENSOR LEARNED VALUES
l RESET THE POWERTRAIN CONTROL MODULE LEARNED VALUES
l RESET THE TURBOCHARGER VARIABLE VANE POSITION SENSOR LEARNED VALUES
l RESET THE WATER IN FUEL WARNING
l STRAIGHT AHEAD ADAPTION ANGLE RESET

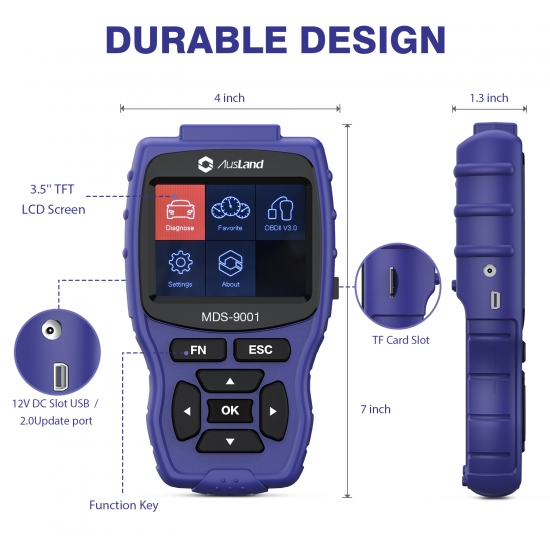

Specification
l Display: 3.5’’ TFT LCD
l Operating temperature: 0 ～ +50℃
l Storage temperature: -20 ～ +70℃
l Operating current: 150mA 12V(Typical)
l Power consumption:1.8W(Typical)
l Packing dimension: 176*102*33mm(L×W×H)
l Weight: 270g

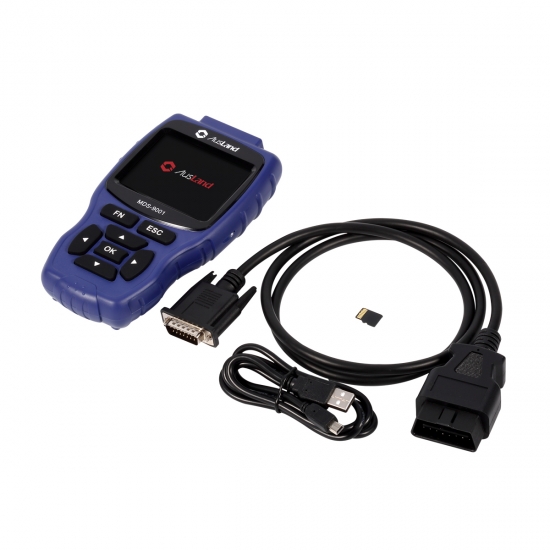

Packing list:
l Main unit 1pc
l Main Cable 1pc
l OBDII-16 Connector 1pc
l USB Cable 1pc
l User Manual 1pc
Highly customized products to meet your special needs, strictly product quality control is our requirement .

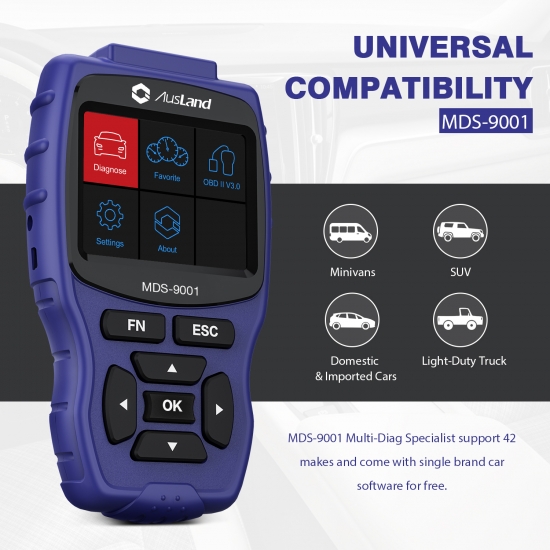

DIAGNOSTIC SCAN TOOL MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.
MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.
MDS-9001 Multi-diag specialist is professional handheld scan tool, not only for small garages, independent repairs, enthusiasts, but also for technicians by delivering OE-level diagnosis on all the electronic systems. It has basic functions such as codes and live data, and capable of advanced functions too, such as actuation, adaptation and programming. In addition, it can lets you to access oil service light reset, throttle body adjustment, DPF regeneration and much more commonly required service features.
MDS-9001 Multi-diag Specialist is Full ECU Diagnosis with capable multi-system platform on OBD2 of 16PIN for engine (gasoline & 12V diesel)，auto transmission, ABS, air bag, air conditioning, instrument cluster, system immobilization, EPB and more. It works for Jaguar car.
