ALT-240SC 4T Economical Clearfloor Two Post Car Lift

hot products

ALT-240SC 4T Economical Clearfloor Two Post Car Lift

Ausland ALT-240SC 4T Economical Clearfloor Two Post Car Lift
  • Item NO.:

    ALT-240SC
  • Size:

    1.32CBM
  • weight:

    710KG
  • Product Details


Ausland ALT-240SC 4T Economical Clearfloor Two Post Car Lift

Ausland ALT-240SC Feature:

Bilateral manual safety unlocking system.

Each post is combined of two columns, which can be separated for the convenience of container transportation.

The cable and oil pipe are fully concealed; with decent and elegant appearance.

Double hydraulic cylinder and high strength chain drive makes stable and smooth lifting and lowering.

Wire rope equalization system forces synchronous movement of two carriages and effectively prevents vehicle form tilting.

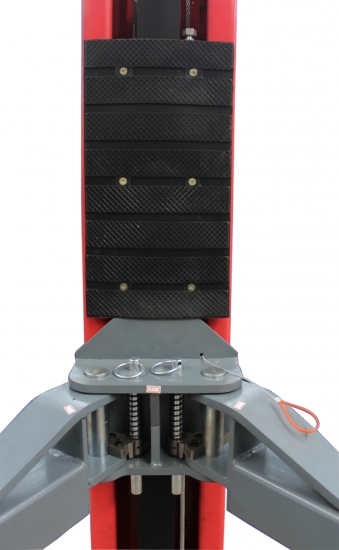

Door rubber pad protects car door from being damaged in collision.

More lifting pads with different height meets the requirements for light Lorries and SUVs.

Passed 115% dynamic loading test and 150% static loading test.

Symmetric and asymmetric installation types are optional


Ausland ALT-240SC Standard Configuration:



 Supporting arms: 2×2 stage Long Arms & 2×2stage Short Arms

Capacity: 4000kg

Weight: 650kg

A. Max. lifting: 1900mm

B. Overall height: 3780mm

C. Overall width: 3400mm

D. Drive through clearance: 2480mm

E. Supporting arm length front min.: 685mm

F. Supporting arm length front max.: 1100mm

G. Supporting arm length rear min.: 845mm

H. Supporting arm length rear max.: 1330mm


I. Adapter height min.: 110mm

J. Adapter height max.: 155mm

K. Clear size column spacing: 2760mm

L. Switch off level: 2700mm

Motor performance: 2.2kw

Electrical connection: 380V-415V

(3 phases): 50-60Hz

Electrical connection: 215V-240V

(1 phases): 50-60Hz

Lifting time: ≤ 60sec

Lowering time: 20-60 sec


Ausland ALT-240SC Optional:


1. Extension Adapter 150mm & 80mm

2. Eco-Alu-Shell Motor

3. δ16mm Reinforce Plates

4. 3 Stage Adapter

5. Foot Protections

6. Foot Protections
